Trailers / Heavy Duty Utility Trailer (U5)

Heavy Duty Utility Trailer (U5)

8,000lb PAYLOAD
12-24' LENGTHS
5" CHANNEL FRAME
Overview
Overview
Specs
Payload
Options
PDF
Find a Dealer

Heavy Duty Utility Trailer

Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Pressure Treated Pine Floor
All our lumber is made and installed to withstand weather.
Premium Components
We use brand name quality products for anything we don't produce in house.
3 Year Structural Warranty
All our frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat.

Heavy Duty Utility Trailer

01
A simple and dependable utility trailer that delivers the durability, versatility, and everyday performance our customers have come to expect.
02

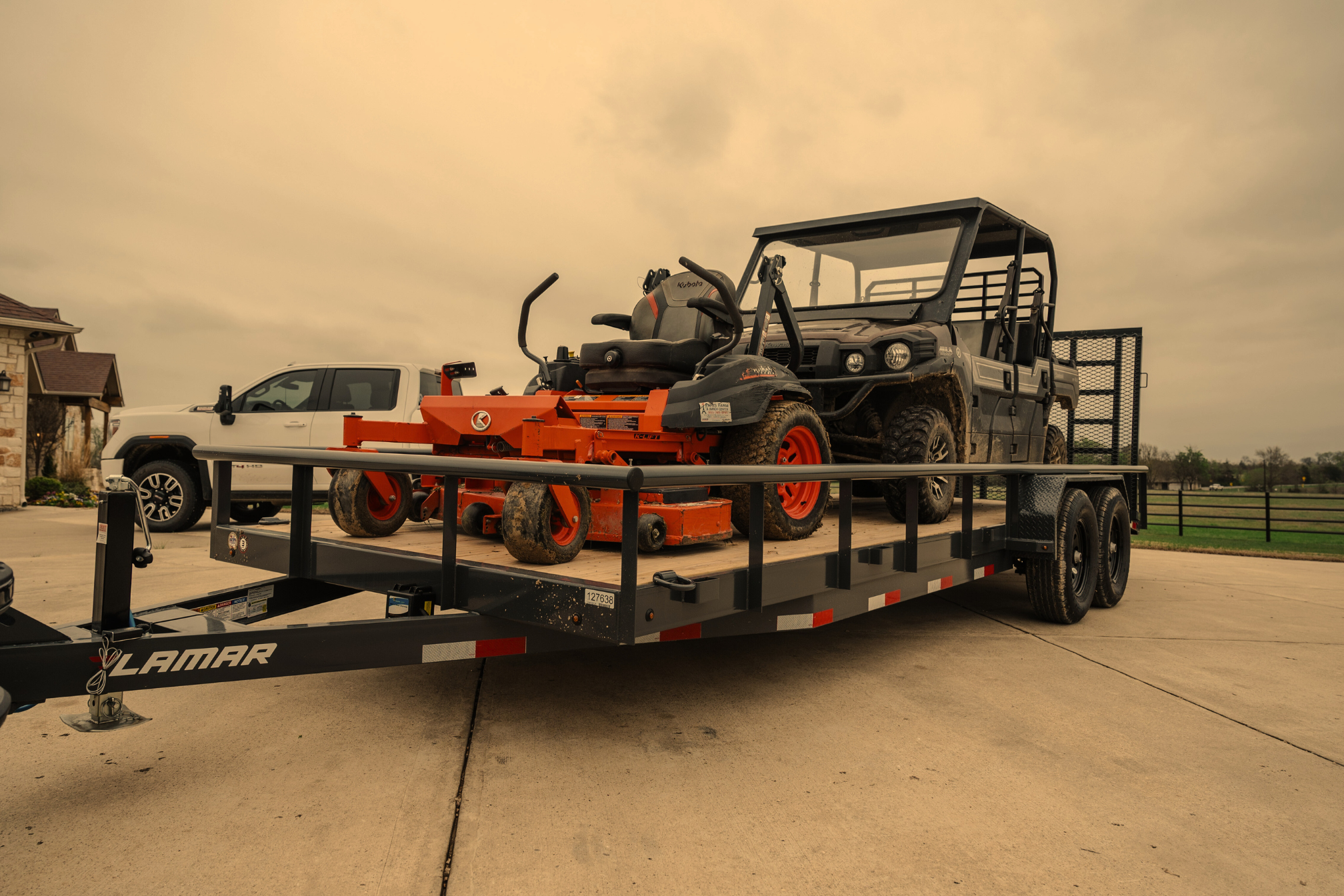

Perfect for hauling lawn equipment, ATVs, side-by-sides, and small tractors with a design that fits work and recreational use alike.
03
Built with Lamar toughness, featuring durable construction and practical loading capabilities to make every job easier.
04
Simple, versatile, and built to last, with a payload of 8,000 lbs., it is a great choice for property owners and landscapers.

Full specs & options

10K Sizes & Payload
Size - Weight - Payload
  • 77" x 12' - 1,812 lbs - 8,188 lbs
  • 77" x 14' - 1,960 lbs - 8,040 lbs
  • 77" x 16' - 2,096 lbs - 7,904 lbs
  • 77" x 18' - 2,225 lbs - 7,775 lbs
  • 77" x 20' - 2,380 lbs - 7,620 lbs
  • 77" x 22' - 2,552 lbs - 7,448 lbs
  • 83" x 12' - 1,860 lbs - 8,140 lbs
  • 83" x 14' - 2,016 lbs - 7,984 lbs
  • 83" x 16' - 2,165 lbs - 7,835 lbs
  • 83" x 18' - 2,300 lbs - 7,700 lbs
  • 83" x 20' - 2,460 lbs - 7,540 lbs
  • 83" x 22' - 2,640 lbs - 7,360 lbs
  • 83" x 24' - 2,856 lbs - 7,144 lbs
Brakes & Suspension
Standard
  • 5.2K Easy Lube Idler Spring Axle & Electric Brake Spring Axle
Options to Exchange or Add On
  • 5.2K Easy Lube Electric Brake Spring Axles
Tires
Standard
  • 235/80 R16 (E)10Ply Tires
Options to Exchange or Add On
  • Spare Tire Mount
  • Spare Tire
Frame
Standard
  • Straight Deck
  • Wrap Tongue
  • 5" Channel Frame
  • Diamond Plate Fenders
  • Side Rails
  • 24" Spaced Crossmembers
  • Treated Yellow Pine Floor
  • 3" X 2" Angle Toprail (Standard on 12'-20')
  • 3" X 3" Square Tube Toprail (Standard on 22'+)
Options to Exchange or Add On
  • 2' Dove Tail
  • 16" Spaced Crossmembers
  • 11 Gauge Diamond Plate Floor
  • 3" X 3" Square Tube Toprail
Hitch
Standard
  • 2-5/16" 21K Demco Adjustable Cast Iron Coupler
Options to Exchange or Add On
  • 3" 25K Adjustable Pintle Eye Coupler
Jack
Standard
  • 7K Drop-Leg Jack
Options to Exchange or Add On
  • Single 10K Drop-Leg Jack
  • Single 10K 2-Speed Jack
  • Pair Of Support Stands
Cargo Loading
Standard
  • Standard Stake Pockets
  • Side or Rear Slide-In Ramps (dependent on length)
Options to Exchange or Add On
  • Front Tool Box
  • Pair Of 24" Wide Heavy Duty Stand-Up Ramps
  • 5' Spring Assisted Heavy Duty Gate With Ramp Legs
  • Weld On D-Rings
  • Flush Mount D-Rings (Steel Floor Only)
  • Flush Mount Swivel D-Rings (Steel Floor Only)
  • Extra Stake Pockets
  • Winch Plate
  • 12,500lb Warrior Winch
  • Receiver Hitch & Plug
Electrical
Standard
  • Led Lights
  • Weather Resistant Harness (-65°F)
Options to Exchange or Add On
  • Solar Charger
Loading Angles
Standard
  • Straight Deck with 57" Slide In Ramps - 22°
Options to Exchange or Add On
  • Straight Deck with 5' Gate - 21°
  • Straight Deck with 24" Stand Up Ramps - 22°
  • 2' Dove with 57" Slide In Ramps - 16°
  • 2' Dove with 5' Gate - 15°
  • 2' Dove with 24" Stand Up Ramps - 16°
Color
Standard
  • Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
  • None Available

Have a Question?

01

"How often do I need to torque my lug nuts?"

After 50 miles, you need to check your lug nuts and torque them to the right specs.
02

"How should I load my trailer?"

Keeping your trailer load properly distributed is very important. Always load heavier towards the tongue. At least 60% of your payload must be forward of the trailer center, with lighter items on the top and rear. Secure everything with proper tie downs.
03

"What kind of warranty do Lamar trailers come with?"

We have a three-year frame warranty and a one-year component warranty. Tire warranty is handled by our tire manufacturer; check the sticker on the front of your trailer for contact information.
04

"What is the payload on Lamar Trailers?"

We have all our weights and payloads listed. Check out individual products here on our website to see details on the trailer you're interested in.
05

"I'm having trouble with my trailer! What should I do?"

Warranty claims are handled through our dealers. They are able to look at any issues firsthand and have them fixed in-house or outsourced by local reputable businesses. Bring your trailer into your local Lamar dealer. If this is not an option, you can email us directly with your VIN, pictures, and a description of the issue at warranty@lamartrailers.com. Any unauthorized work will not be reimbursed.
06

"What is causing my trailer's tire wear?"

Tire wear should be checked frequently. Once a tire wear pattern is established, stopping becomes difficult, even when the underlying cause is corrected. Tire pressure should always be in accordance with the manufacturer's recommended pressure rating for any given load.

1. Always check tire pressure cold before operation.

2. Do not bleed air from tires when they are hot.
07

"I scratched my trailer, where can I get touch up paint?"

Our charcoal gray color is a close match to the Rustoleum Gloss Charcoal rattle can available at most hardware stores.
08

"My hydraulic reservoir is flooding; how can I fix it?"

Typically, an overflowing reservoir is caused by a low battery.

On a low battery, the cylinder will push air instead of fluid into the cylinder, causing the fluid to be pushed out into the reservoir.

Charge the battery on your dump or tilt trailer or replace it and cycle the dump up and down to see if the oil will go down.
09

"Where is my trailer VIN on my Lamar Trailer?"

Your VIN sticker is usually located on the inside of your trailer tongue.
10

"How do I grease my trailers axles?"

If your trailer has grease axles, we recommend re-greasing them once a year or every 12,000–36,000 miles. Jack up the trailer, remove the hub grommet, and use a manual grease gun on the grease zerk (pneumatic guns can damage seals). Slowly spin the wheel while adding grease until new grease appears, then stop. Wipe off the excess, replace the grommet, and repeat on all axles.
11

"What hydraulic fluid do I need for my trailer's hydraulic pump?"

If you are looking to fill up or replace the hydraulic fluid in the hydraulic pump on your Lamar trailer, you should replace it with AW-32.

You can find AW-32 Fluid at any local trailer dealership, Home Depot, Lowes, or local parts stores like Advanced Auto Parts, O'Reillys, or Auto Zone.
