Trailers / Mini Dump (DS)

Mini Dump (DS)

RIGID RAIL SIDE SUPPORTS
4,500lb - 7,500lb PAYLOAD
ADJUSTABLE COUPLER
Overview
Overview
Specs
Payload
Options
PDF
Find a Dealer

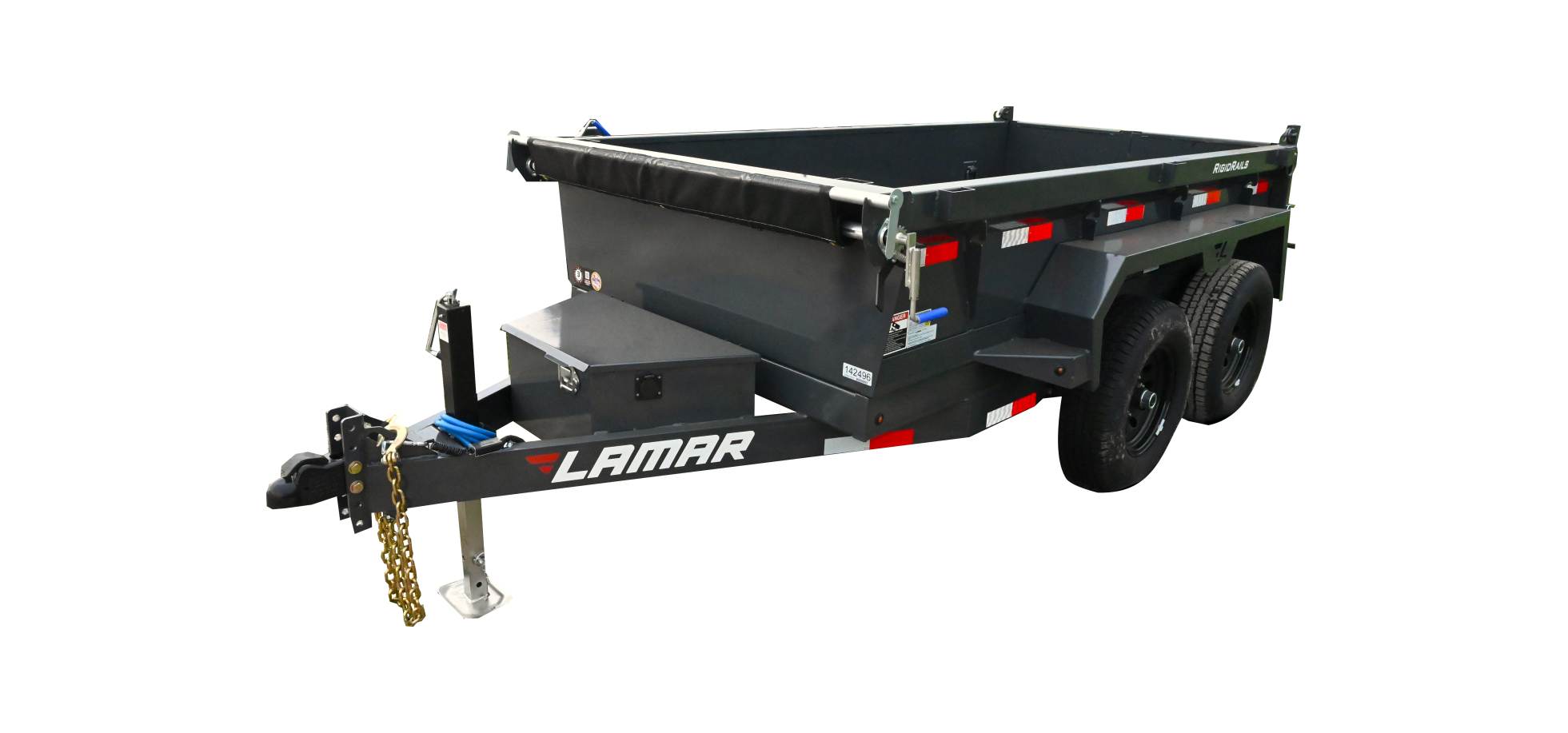

MINI DUMP

Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Premium Components
We use brand name quality products for anything we don't produce in house.
3 Year Structural Warranty
All our frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat.

Full specs & options

7K Sizes & Payload
Axle Quantity - Size - Weight - Payload
  • Single Axle - 60" x 10' - 2,220 lbs - 4,780 lbs
  • Tandem Axle - 60" x 10' - 2,345 lbs - 4,655 lbs
10K Sizes & Payload
Size - Weight - Payload
  • 60" x 10' - 2,460 lbs - 7,540 lbs
Brakes & Suspension
Standard
  • Varies by GVWR
  • 7K Easy Lube Electric Brake Spring Axle (Single Axle 7K GVWR)
  • 3.5K Easy Lube Electric Brake Spring Axles (Tandem 7K GVWR)
  • 5.2K Easy Lube Electric Brake Spring Axles (Tandem 10K GVWR)
Options to Exchange or Add On
  • None Available
Tires
Standard
  • 235/80 R16 (E) 10Ply Tires (Single Axle 7K GVWR)
  • 205/75 R15 (C) 6Ply Tire (Tandem 7K GVWR)
  • 225/75 R15 (D) 8Ply Tire (Tandem 10K GVWR)
  • Spare Tire Mount
Options to Exchange or Add On
  • 235/80 R16 (E) 10Ply Tires (Tandem 10K GVWR)
  • 235/85 R16 (G) 14Ply Tires (Single Axle 7K GVWR)
  • Spare Tire
Frame
Standard
  • Wrap Tongue
  • 5" Channel Frame (25.5" Deck Height)
  • 16" Spaced Crossmembers
  • 18" Weld-On Sides (3 Cubic Yards)
Options to Exchange or Add On
  • 24" Weld-On Sides (4 Cubic Yards)
  • 24" Solid Metal Side Extensions
Hitch
Standard
  • 2" 10K Demco Adjustable Cast Iron Coupler
Options to Exchange or Add On
  • 2-5/16" 21K Demco Adjustable Cast Iron Coupler (Standard on Tandem 10K GVWR)
Jack
Standard
  • 7K Drop-Leg Jack
Options to Exchange or Add On
  • Single 10K Drop-Leg Jack
Cargo Loading
Standard
  • Front Tool Box
  • Barn Doors
  • Easy Roll Mesh Tarp
  • Standard Stake Pockets
  • Pair Of Slide-In Ramps (25°)
Options to Exchange or Add On
  • Spreader Gate
  • Weld On D-Rings
  • Extra Stake Pockets
Electrical
Standard
  • Weather Resistant Harness (-65°F)
  • 5 Amp Trickle Charger
  • 3.5" X 24" Hydraulic Cylinder (43°)
  • Led Lights
Options to Exchange or Add On
  • Solar Charger
  • Wireless Remote Control
Color
Standard
  • Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
  • None Available

Have a Question?

01

"How often do I need to torque my lug nuts?"

After 50 miles, you need to check your lug nuts and torque them to the right specs.
02

"How should I load my trailer?"

Keeping your trailer load properly distributed is very important. Always load heavier towards the tongue. At least 60% of your payload must be forward of the trailer center, with lighter items on the top and rear. Secure everything with proper tie downs.
03

"What kind of warranty do Lamar trailers come with?"

We have a three-year frame warranty and a one-year component warranty. Tire warranty is handled by our tire manufacturer; check the sticker on the front of your trailer for contact information.
04

"What is the payload on Lamar Trailers?"

We have all our weights and payloads listed. Check out individual products here on our website to see details on the trailer you're interested in.
05

"I'm having trouble with my trailer! What should I do?"

Warranty claims are handled through our dealers. They are able to look at any issues firsthand and have them fixed in-house or outsourced by local reputable businesses.
Bring your trailer into your local Lamar dealer.
If this is not an option, you can email us directly with your VIN, pictures, and a description of the issue at warranty@lamartrailers.com. Any unauthorized work will not be reimbursed.
06

"What is causing my trailer's tire wear?"

Tire wear should be checked frequently. Once a tire wear pattern is established, stopping becomes difficult, even when the underlying cause is corrected. Tire pressure should always be in accordance with the manufacturer's recommended pressure rating for any given load.
1. Always check tire pressure cold before operation.
2. Do not bleed air from tires when they are hot.
07

"I scratched my trailer, where can I get touch up paint?"

Our charcoal gray color is a close match to the Rustoleum Gloss Charcoal rattle can available at most hardware stores.
08

"My hydraulic reservoir is flooding; how can I fix it?"

Typically, an overflowing reservoir is caused by a low battery.
On a low battery, the cylinder will push air instead of fluid into the cylinder, causing the fluid to be pushed out into the reservoir.
Charge the battery on your dump or tilt trailer or replace it and cycle the dump up and down to see if the oil will go down.
09

"Where is my trailer VIN on my Lamar Trailer?"

Your VIN sticker is usually located on the inside of your trailer tongue.
10

"How do I grease my trailers axles?"

If your trailer has grease axles, we recommend re-greasing them once a year or every 12,000–36,000 miles. Jack up the trailer, remove the hub grommet, and use a manual grease gun on the grease zerk (pneumatic guns can damage seals). Slowly spin the wheel while adding grease until new grease appears, then stop. Wipe off the excess, replace the grommet, and repeat on all axles.
11

"What hydraulic fluid do I need for my trailer's hydraulic pump?"

If you are looking to fill up or replace the hydraulic fluid in the hydraulic pump on your Lamar trailer, you should replace it with AW-32.
You can find AW-32 Fluid at any local trailer dealership, Home Depot, Lowes, or local parts stores like Advanced Auto Parts, O'Reillys, or Auto Zone.
