Trailers / Heavy Duty Equipment Hauler (H8)

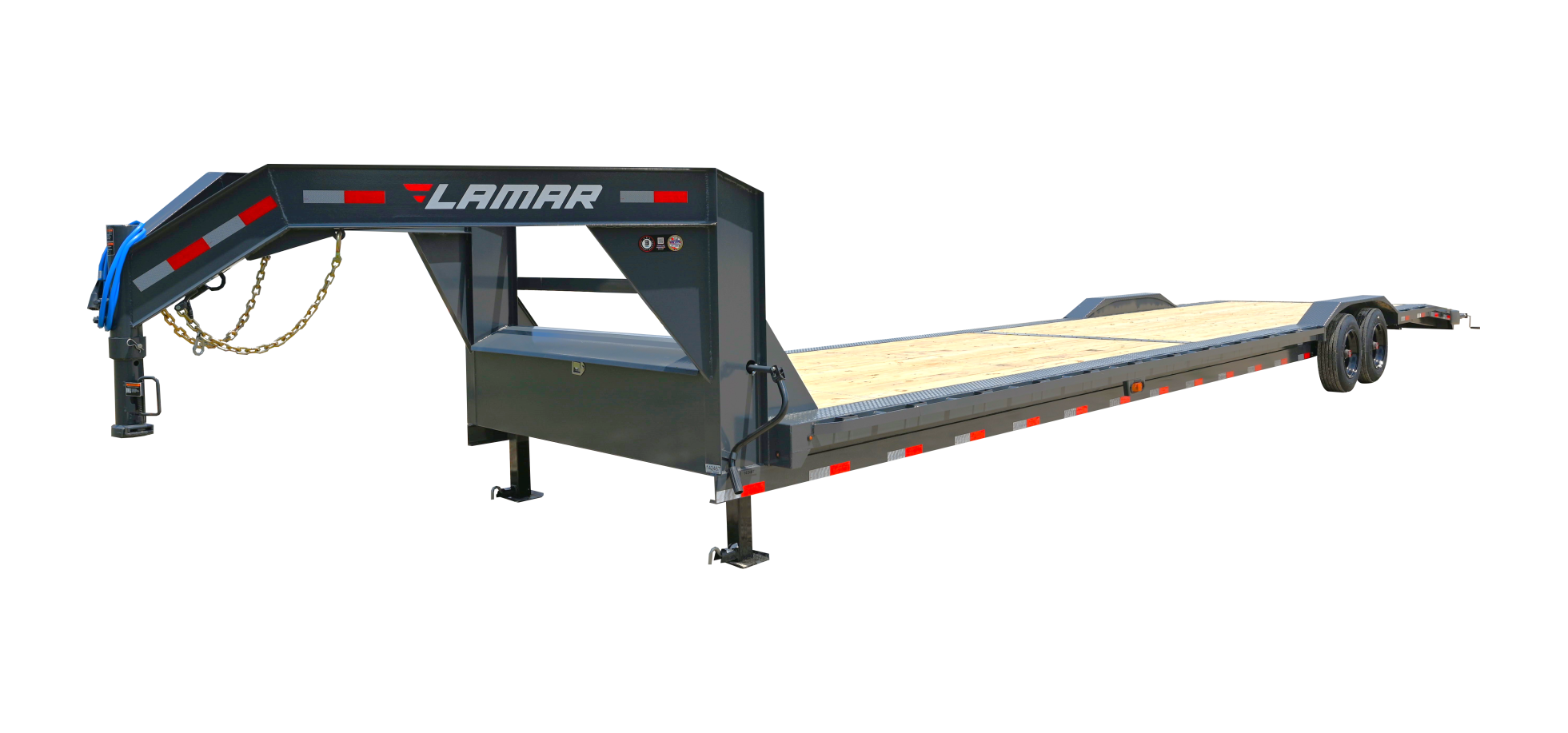

Heavy Duty Equipment Hauler (H8)

8" CHANNEL FRAME
16" SPACED CROSSMEMBERS
CARGO TIE DOWNS
Overview
Overview
Specs
Payload
Options
PDF
Find a Dealer

HD Equipment Hauler

Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Pressure Treated Pine Floor
All our lumber is made and installed to withstand weather.
Premium Components
We use brand name quality products for anything we don't produce in house.
3 Year Structural Warranty
All our frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat.

Full specs & options

14K Sizes & Payload
Size - Weight - Payload
  • 83" x 24' - 3,380 lbs - 10,620 lbs
  • 83" x 26' - 3,970 lbs - 10,030 lbs
  • 83" x 28' - 3,720 lbs - 10,280 lbs
  • 83" x 32' - 4,070 lbs - 9,930 lbs
  • 83" x 36' - 4,410 lbs - 9,590 lbs
  • 83" x 40' - 4,750 lbs - 9,250 lbs
  • 102" x 24' - 4,570 lbs - 9,430 lbs
  • 102" x 26' - 3,945 lbs - 10,050 lbs
  • 102" x 28' - 5,000 lbs - 9,000 lbs
  • 102" x 32' - 5,490 lbs - 8,510 lbs
  • 102" x 36' - 5,860 lbs - 8,140 lbs
  • 102" x 40' - 6,395 lbs - 7,605 lbs
16K Sizes & Payload
Size - Weight - Payload
  • 83" x 24' - 3,530 lbs - 12,470 lbs
  • 83" x 26' - 4,330 lbs - 11,670 lbs
  • 83" x 28' - 3,870 lbs - 12,130 lbs
  • 83" x 32' - 4,220 lbs - 11,780 lbs
  • 83" x 36' - 4,560 lbs - 11,440 lbs
  • 83" x 40' - 4,900 lbs - 11,100 lbs
  • 102" x 24' - 4,720 lbs - 11,280 lbs
  • 102" x 26' - 4,450 lbs - 11,550 lbs
  • 102" x 28' - 5,150 lbs - 10,850 lbs
  • 102" x 32' - 5,640 lbs - 10,360 lbs
  • 102" x 36' - 6,010 lbs - 9,990 lbs
  • 102" x 40' - 6,545 lbs - 9,455 lbs
21K Sizes & Payload
Size - Weight - Payload
  • 102" x 24' - 4,250 lbs - 16,750 lbs
  • 102" x 26' - 4,460 lbs - 16,540 lbs
  • 102" x 28' - 4,870 lbs - 16,130 lbs
  • 102" x 32' - 5,280 lbs - 15,720 lbs
  • 102" x 36' - 6,140 lbs - 14,860 lbs
  • 102" x 40' - 6,760 lbs - 14,240 lbs
Brakes & Suspension
Standard
  • Varies by GVWR
  • 7K Easy Lube Electric Brake Spring Axles (14K & 21K GVWR)
  • 8K Electric Brake Oil Bath Spring Axles (16K GVWR)
Options to Exchange or Add On
  • 7K Electric Brake Oil Bath Spring Axles (14K & 21K GVWR)
  • 7K Easy Lube Electric Brake 22.5° Down Torsion Axles (14K & 21K GVWR)
Tires
Standard
  • Varies by GVWR
  • 235/80 R16 (E)10Ply Tires (14K GVWR)
  • 215/75 R17.5 (H) 16Ply Tires (16K GVWR)
Options to Exchange or Add On
  • 235/85 R16 (G) 14Ply Tires
  • 215/75 R17.5 (H) 16Ply Tires
  • Spare Tire
  • Spare Tire Mount
Frame
Standard
  • Straight Deck
  • Wrap Tongue
  • 8" Channel Frame
  • Diamond Plate Fenders (Standard on 83" Wide)
  • Drive Over Fenders (Standard on 102" Wide)
  • 16" Spaced Crossmembers
  • Treated Yellow Pine Floor
Options to Exchange or Add On
  • 2' Dove Tail
  • 4' Dove Tail
  • 8' Deck Over Neck
  • Removable Diamond Plate Fenders
  • Drive Over Fenders
  • 11 Gauge Diamond Plate Floor
  • Oak Floor
Hitch
Standard
  • 2-5/16" 25K Gooseneck Coupler
  • Ground to Coupler Height - 25" - 33"
Options to Exchange or Add On
  • 2-5/16" 21K Demco Adjustable Cast Iron Coupler
  • 3" 25K Adjustable Pintle Eye Coupler
  • 2-5/16" 30K Gooseneck Adjustable Topwind Square Coupler
  • 4" Raised Neck & Coupler (ideal for lifted trucks)
  • 10" Raised Neck & Coupler (ideal for lifted trucks)
Jack
Standard
  • Dual 10K Drop-Leg Jacks
Options to Exchange or Add On
  • Dual 10K 2-Speed Jacks
  • Dual 10K Hydraulic Jacks
  • Single 10K Drop-Leg Jack (Bumperpull only)
  • Single 10K 2-Speed Jack (Bumperpull only)
  • Single 10K Hydraulic Jack (Bumperpull only)
Cargo Loading
Standard
  • Rub Rail
  • Standard Stake Pockets
  • Pair Of Heavy Duty Slide-In Ramps
Options to Exchange or Add On
  • Front Tool Box
  • Weld On D-Rings
  • Flush Mount D-Rings (Steel Floor Only)
  • Flush Mount Swivel D-Rings (Steel Floor Only)
  • Extra Stake Pockets
  • Lockable Chain Rack
  • Winch Plate
  • 12,500lb Warrior Winch
  • Receiver Hitch & Plug
  • Pair Of Rhino Ramps
  • Pair Of 24" Wide Heavy Duty Stand-Up Ramps
Electrical
Standard
  • Led Lights
  • Weather Resistant Harness (-65°F)
Options to Exchange or Add On
  • Solar Charger
Loading Angles
Standard
  • Straight Deck with 80" Slide In Ramps - 19°
Options to Exchange or Add On
  • Straight Deck with 24" Stand Up Ramps - 27°
  • 2' Dove with 80" Slide In Ramps - 15°
  • 2' Dove with 24" Stand Up Ramps - 19°
  • 4' Dove with 80" Slide In Ramps - 12°
  • 4' Dove with 24" Stand Up Ramps - 15°
  • 4' Dove with Rhino Ramps - 16°
Color
Standard
  • Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
  • None Available

Have a Question?

01

"How often do I need to torque my lug nuts?"

After 50 miles, you need to check your lug nuts and torque them to the right specs.
02

"How should I load my trailer?"

Keeping your trailer load properly distributed is very important. Always load heavier towards the tongue. At least 60% of your payload must be forward of the trailer center, with lighter items on the top and rear. Secure everything with proper tie downs.
03

"What kind of warranty do Lamar trailers come with?"

We have a three-year frame warranty and a one-year component warranty. Tire warranty is handled by our tire manufacturer; check the sticker on the front of your trailer for contact information.
04

"What is the payload on Lamar Trailers?"

We have all our weights and payloads listed. Check out individual products here on our website to see details on the trailer you're interested in.
05

"I'm having trouble with my trailer! What should I do?"

Warranty claims are handled through our dealers. They are able to look at any issues firsthand and have them fixed in-house or outsourced by local reputable businesses. Bring your trailer into your local Lamar dealer. If this is not an option, you can email us directly with your VIN, pictures, and a description of the issue at warranty@lamartrailers.com. Any unauthorized work will not be reimbursed.
06

"What is causing my trailer's tire wear?"

Tire wear should be checked frequently. Once a tire wear pattern is established, stopping becomes difficult, even when the underlying cause is corrected. Tire pressure should always be in accordance with the manufacturer's recommended pressure rating for any given load.
1. Always check tire pressure cold before operation.
2. Do not bleed air from tires when they are hot.
07

"I scratched my trailer, where can I get touch up paint?"

Our charcoal gray color is a close match to the Rustoleum Gloss Charcoal rattle can available at most hardware stores.
08

"My hydraulic reservoir is flooding; how can I fix it?"

Typically, an overflowing reservoir is caused by a low battery.
On a low battery, the cylinder will push air instead of fluid into the cylinder, causing the fluid to be pushed out into the reservoir.
Charge the battery on your dump or tilt trailer or replace it and cycle the dump up and down to see if the oil will go down.
09

"Where is my trailer VIN on my Lamar Trailer?"

Your VIN sticker is usually located on the inside of your trailer tongue.
10

"How do I grease my trailers axles?"

If your trailer has grease axles, we recommend re-greasing them once a year or every 12,000–36,000 miles. Jack up the trailer, remove the hub grommet, and use a manual grease gun on the grease zerk (pneumatic guns can damage seals). Slowly spin the wheel while adding grease until new grease appears, then stop. Wipe off the excess, replace the grommet, and repeat on all axles.
11

"What hydraulic fluid do I need for my trailer's hydraulic pump?"

If you are looking to fill up or replace the hydraulic fluid in the hydraulic pump on your Lamar trailer, you should replace it with AW-32.
You can find AW-32 Fluid at any local trailer dealership, Home Depot, Lowes, or local parts stores like Advanced Auto Parts, O'Reillys, or Auto Zone.
