Trailers / Deckover (F8)

Deckover (F8)

8" I-BEAM FRAME
WIDE LOAD NO FENDERS
CARGO TIE DOWNS
Overview
Overview
Specs
Payload
Options
PDF
Find a Dealer

Deckover

Arctic Wire Harness
All our wire harnesses are sealed and the front hook up is rated for -65°F.
Pressure Treated Pine Floor
All our lumber is made and installed to withstand weather.
Premium Components
We use brand name quality products for anything we don't produce in house.
3 Year Structural Warranty
All our frames are built tough and we back them up with a 3 year warranty.
Premium Powder Coat
We metal blast and apply a super durable powder coat.

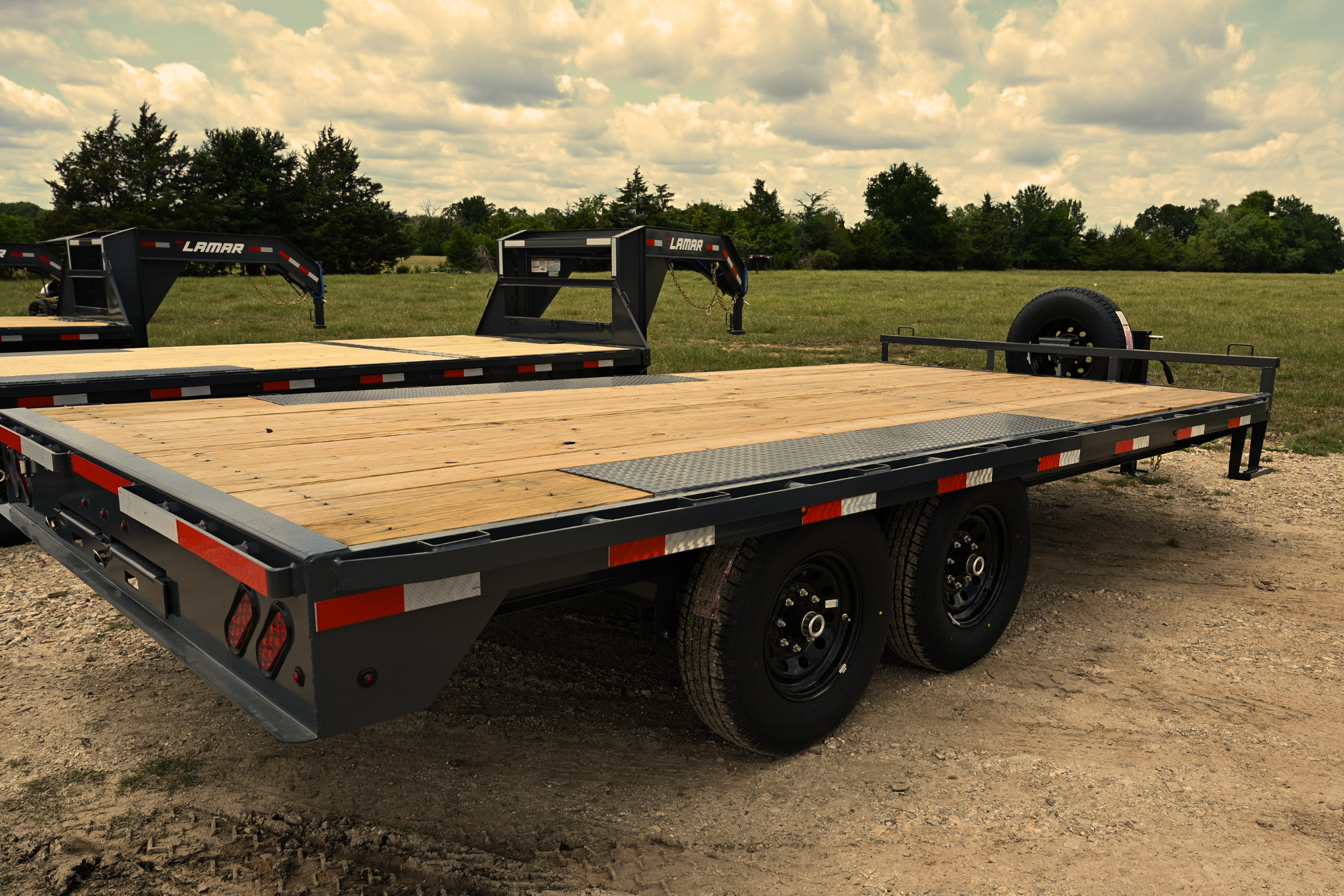

Deckover Trailer

01
Need to haul bulk material or equipment without having fenders to get in the way? This deckover was designed for you. We built it as low as possible, but without fenders for maximum usable deck space.
02
Whether you simply need a straight deck trailer for hauling bulk material and palletized items, or you need a trailer that is multi purpose to also haul your equipment, the F8 can take care of you!
03
This trailer comes in 16' to 24' lengths (in 2' increments) and typically requires at least a 3/4 ton tow vehicle.
04
This trailer is standard as a bumper pull, but can be built as a gooseneck. Need a little bit of a higher GVWR? Check out the FS model deckover!

Full specs & options

14K Sizes & Payload
Size - Weight - Payload
  • 102" x 16' - 3,325 lbs - 10,675 lbs
  • 102" x 18' - 3,435 lbs - 10,565 lbs
  • 102" x 20' - 3,675 lbs - 10,325 lbs
  • 102" x 22' - 3,970 lbs - 10,030 lbs
  • 102" x 24' - 4,231 lbs - 9,769 lbs
Brakes & Suspension
Standard
  • 7K Easy Lube Electric Brake Spring Axles
Options to Exchange or Add On
  • 7K Electric Brake Oil Bath Spring Axles
  • 7K Easy Lube Electric Brake 22.5° Down Torsion Axles
Tires
Standard
  • 235/80 R16 (E) 10Ply Tires
Options to Exchange or Add On
  • 235/85 R16 (G) 14Ply Tires
  • 215/75 R17.5 (H) 16Ply Tires
  • Spare Tire Mount
  • Spare Tire
Frame
Standard
  • Straight Deck
  • 8" 10 lb I-Beam Frame
  • 16" Spaced Crossmembers
  • Treated Yellow Pine Floor
Options to Exchange or Add On
  • 4' Dove Tail with 5' HD Gate or HD Stand Up Ramps
  • 5' Dove Tail with Rhino Ramps
  • 8' Deck Over Neck
  • 12" Spaced Crossmembers
  • 11 Gauge Diamond Plate Floor
  • Oak Floor
Hitch
Standard
  • 2-5/16" 21K Demco Adjustable Cast Iron Coupler
Options to Exchange or Add On
  • 3" 25K Adjustable Pintle Eye Coupler
  • 2-5/16" 25K Gooseneck Coupler
  • 2-5/16" 30K Gooseneck Adjustable Topwind Square Coupler
  • 4" Raised Neck & Coupler (ideal for lifted trucks)
  • 10" Raised Neck & Coupler (ideal for lifted trucks)
Jack
Standard
  • Single 10K Drop-Leg Jack
Options to Exchange or Add On
  • Dual 10K Drop-Leg Jacks
  • Single 10K 2-Speed Jack
  • Dual 10K 2-Speed Jacks
  • Dual 10k Hydraulic Jacks
Cargo Loading
Standard
  • Expanded Metal Tool Tray
  • Rub Rail
  • Standard Stake Pockets
  • Pair Of Slide-In Ramps
  • Side Step On Both Sides
Options to Exchange or Add On
  • Front Tool Box
  • 4' Side Mount Tool Box
  • 5' Spring Assisted Heavy Duty Gate With Ramp Legs
  • Weld On D-Rings
  • Flush Mount D-Rings (Steel Floor Only)
  • Flush Mount Swivel D-Rings (Steel Floor Only)
  • Weld On Strap Winches
  • Sliding Strap Track & Winches
  • Lockable Chain Rack
  • Winch Plate
  • 12,500lb Warrior Winch
  • Receiver Hitch & Plug
  • Pair Of Rhino Ramps
  • Pair Of 24" Wide Heavy Duty Stand-Up Ramps
Electrical
Standard
  • Led Lights
  • Weather Resistant Harness (-65°F)
Options to Exchange or Add On
  • Solar Charger
Loading Angles
Standard
  • Straight Deck with 96" Slide In Ramps - 20°
Options to Exchange or Add On
  • 4' Dove with 24" Stand Up Ramps - 18°
  • 4' Dove with HD 5' Gate - 18°
  • 5' Dove with Rhino Ramps - 16°
Color
Standard
  • Lamar Charcoal Gray Powder Coat
Options to Exchange or Add On
  • None Available

Have a Question?

01

"How often do I need to torque my lug nuts?"

After 50 miles, you need to check your lug nuts and torque them to the right specs.
02

"How should I load my trailer?"

Keeping your trailer load properly distributed is very important. Always load heavier towards the tongue. At least 60% of your payload must be forward of the trailer center, with lighter items on the top and rear. Secure everything with proper tie downs.
03

"What kind of warranty do Lamar trailers come with?"

We have a three-year frame warranty and a one-year component warranty. Tire warranty is handled by our tire manufacturer; check the sticker on the front of your trailer for contact information.
04

"What is the payload on Lamar Trailers?"

We have all our weights and payloads listed. Check out individual products here on our website to see details on the trailer you're interested in.
05

"I'm having trouble with my trailer! What should I do?"

Warranty claims are handled through our dealers. They are able to look at any issues firsthand and have them fixed in-house or outsourced by local reputable businesses. Bring your trailer into your local Lamar dealer. If this is not an option, you can email us directly with your VIN, pictures, and a description of the issue at warranty@lamartrailers.com. Any unauthorized work will not be reimbursed.
06

"What is causing my trailer's tire wear?"

Tire wear should be checked frequently. Once a tire wear pattern is established, stopping becomes difficult, even when the underlying cause is corrected. Tire pressure should always be in accordance with the manufacturer's recommended pressure rating for any given load.

1. Always check tire pressure cold before operation.

2. Do not bleed air from tires when they are hot.
07

"I scratched my trailer, where can I get touch up paint?"

Our charcoal gray color is a close match to the Rustoleum Gloss Charcoal rattle can available at most hardware stores.
08

"My hydraulic reservoir is flooding; how can I fix it?"

Typically, an overflowing reservoir is caused by a low battery.

On a low battery, the cylinder will push air instead of fluid into the cylinder, causing the fluid to be pushed out into the reservoir.

Charge the battery on your dump or tilt trailer or replace it and cycle the dump up and down to see if the oil will go down.
09

"Where is my trailer VIN on my Lamar Trailer?"

Your VIN sticker is usually located on the inside of your trailer tongue.
10

"How do I grease my trailers axles?"

If your trailer has grease axles, we recommend re-greasing them once a year or every 12,000–36,000 miles. Jack up the trailer, remove the hub grommet, and use a manual grease gun on the grease zerk (pneumatic guns can damage seals). Slowly spin the wheel while adding grease until new grease appears, then stop. Wipe off the excess, replace the grommet, and repeat on all axles.
11

"What hydraulic fluid do I need for my trailer's hydraulic pump?"

If you are looking to fill up or replace the hydraulic fluid in the hydraulic pump on your Lamar trailer, you should replace it with AW-32.

You can find AW-32 Fluid at any local trailer dealership, Home Depot, Lowes, or local parts stores like Advanced Auto Parts, O'Reillys, or Auto Zone.
