Classic Carhauler (CC)

Trailers / Classic Carhauler (CC)

ADJUSTABLE COUPLER

5" CHANNEL FRAME

7,500lb PAYLOAD

Overview

Find a Dealer

SPECS

Experience the Lamar Difference: At Lamar, we believe buying and owning a trailer should be simple.

Arctic Wire Harness

All our wire harnesses are sealed and the front hook up is rated for -65°F.

Premium Components

We use brand name quality products for anything we don't produce in house.

3 Year Structural Warranty

All our frames are built tough and we back them up with a 3 year warranty.

Premium Powder Coat

We metal blast and apply a super durable powder coat.

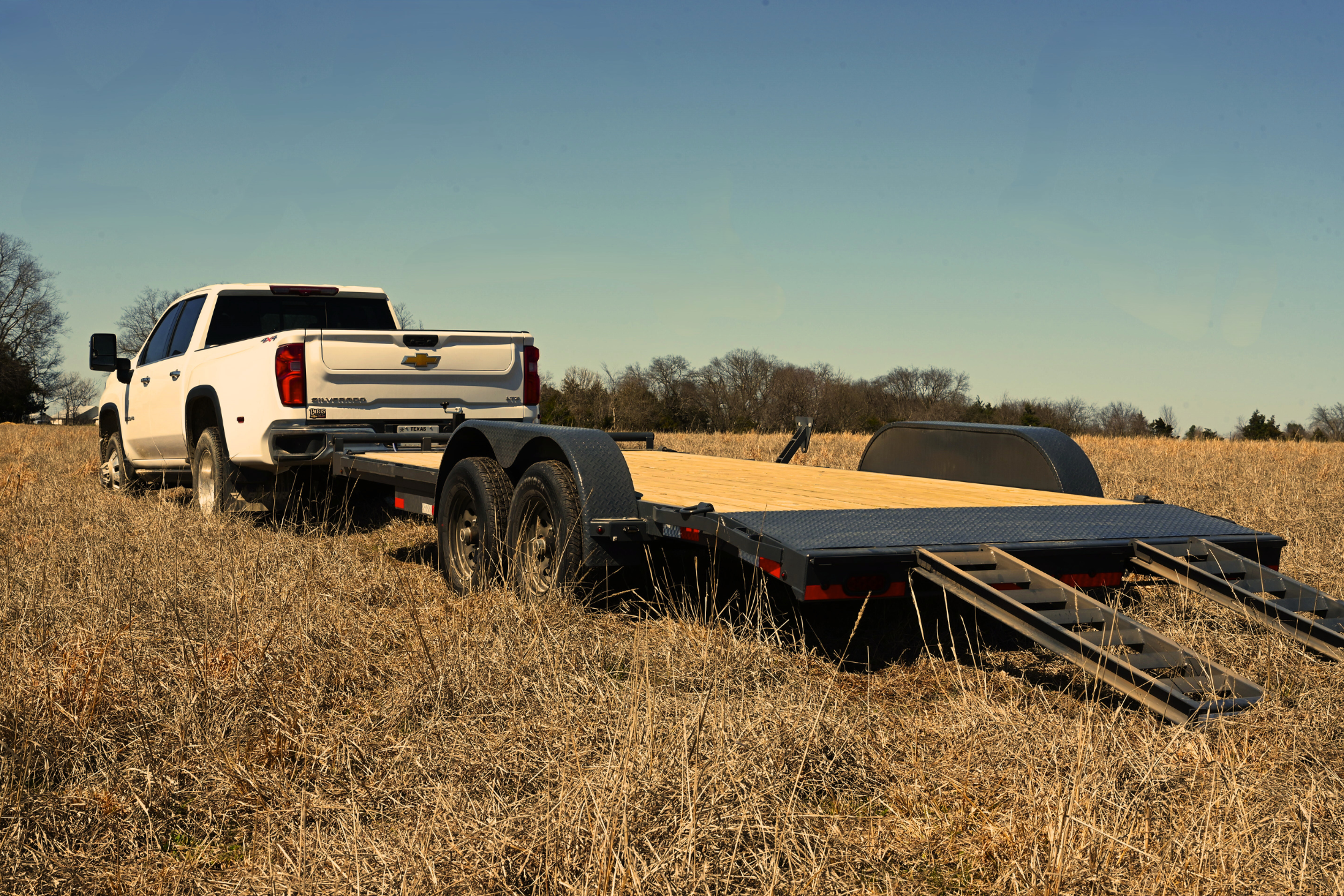

Classic Carhauler

A simple trailer model that provides an excellent towing experience and has withstood the test of time.

These medium duty carhaulers are at home behind a half-ton tow vehicle that has a max towing capacity of 10,400lbs.

We build these trailers with you in mind. Simple and hassle free to use with a beefy 5" frame and 5" full wrap tongue to give strength where it's needed. Couple that with our standard slipper spring suspension, and you've got a trailer that will last.

With an 8,000lb payload, these trailers are great for hauling vehicles and medium duty equipment. If you need a heavier GVWR for your equipment, check out our H6 model equipment hauler!

Full specs & options

10K Sizes & Payload

Size - Weight - Payload

83" x 16' - 2,150 lbs - 7,850 lbs
83" x 18' - 2,210 lbs - 7,790 lbs
83" x 20' - 2,265 lbs - 7,735 lbs
83" x 22' - 2,635 lbs - 7,365 lbs
83" x 24' - 2,750 lbs - 7,250 lbs
102" x 20' - 2,770 lbs - 7,230 lbs
102" x 22' - 3,000 lbs - 7,000 lbs
102" x 24' - 3,250 lbs - 6,750 lbs

Brakes & Suspension

Standard

5.2K Easy Lube Idler Spring Axle & Electric Brake Spring Axle

Options to Exchange or Add On

5.2K Easy Lube Electric Brake Spring Axles

Tires

Standard

225/75 R15 (D) 8Ply Tires

Options to Exchange or Add On

235/80 R16 (E)10Ply Tires
Spare Tire Mount
Spare Tire

Frame

Standard

2' Dove Tail
Wrap Tongue
5" Channel Frame (6" Channel Frame on 24' Only)
Diamond Plate Teardrop Fenders (Standard on 83" Wide)
Drive Over Fenders (Standard on 102" Wide)
24" Spaced Crossmembers
Treated Yellow Pine Floor

Options to Exchange or Add On

Straight Deck
4' Dove Tail
Removable Diamond Plate Teardrop Fenders
Diamond Plate Fenders
Removable Diamond Plate Fenders
16" Spaced Crossmembers
11 Gauge Diamond Plate Floor

Hitch

Standard

2-5/16" Demco Adjustable Cast Iron Coupler

Options to Exchange or Add On

None Available

Jack

Standard

7K Drop-Leg Jack

Options to Exchange or Add On

Single 10K Drop-Leg Jack
Pair Of Support Stands

Cargo Loading

Standard

Rub Rail
Standard Stake Pockets
Pair Of Slide-In Ramps (13° Loading Angle)

Options to Exchange or Add On

Pair Of 24" Wide Heavy Duty Stand-Up Ramps
Front Tool Box
Weld On D-Rings
Flush Mount D-Rings (Steel Floor Only)
Flush Mount Swivel D-Rings (Steel Floor Only)
Extra Stake Pockets
Winch Plate
12,500lb Warrior Winch
Receiver Hitch & Plug

Electrical

Standard

Led Lights
Weather Resistant Harness (-65°F)

Options to Exchange or Add On

Solar Charger

Loading Angle

Standard

2' Dove with 57" Slide In Ramps - 16°

Options to Exchange or Add On

Straight Deck with 57" Slide in Ramps - 22°

Color

Standard

Lamar Charcoal Gray Powder Coat

Options to Exchange or Add On

None Available

Have a Question?

"How often do I need to torque my lug nuts?"

After 50 miles, you need to check your lug nuts and torque them to the right specs.

"How should I load my trailer?"

Keeping your trailer load properly distributed is very important. Always load heavier towards the tongue. At least 60% of your payload must be forward of the trailer center, with lighter items on the top and rear. Secure everything with proper tie downs.

"What kind of warranty do Lamar trailers come with?"

We have a three-year frame warranty and a one-year component warranty. Tire warranty is handled by our tire manufacturer; check the sticker on the front of your trailer for contact information.

"What is the payload on Lamar Trailers?"

We have all our weights and payloads listed. Check out individual products here on our website to see details on the trailer you're interested in.

"I'm having trouble with my trailer! What should I do?"

Warranty claims are handled through our dealers. They are able to look at any issues firsthand and have them fixed in-house or outsourced by local reputable businesses. Bring your trailer into your local Lamar dealer. If this is not an option, you can email us directly with your VIN, pictures, and a description of the issue at warranty@lamartrailers.com. Any unauthorized work will not be reimbursed.

"What is causing my trailer's tire wear?"

Tire wear should be checked frequently. Once a tire wear pattern is established, stopping becomes difficult, even when the underlying cause is corrected. Tire pressure should always be in accordance with the manufacturer's recommended pressure rating for any given load.
1. Always check tire pressure cold before operation.
2. Do not bleed air from tires when they are hot.

"I scratched my trailer, where can I get touch up paint?"

Our charcoal gray color is a close match to the Rustoleum Gloss Charcoal rattle can available at most hardware stores.

"My hydraulic reservoir is flooding; how can I fix it?"

Typically, an overflowing reservoir is caused by a low battery.
On a low battery, the cylinder will push air instead of fluid into the cylinder, causing the fluid to be pushed out into the reservoir.
Charge the battery on your dump or tilt trailer or replace it and cycle the dump up and down to see if the oil will go down.

"Where is my trailer VIN on my Lamar Trailer?"

Your VIN sticker is usually located on the inside of your trailer tongue.

"How do I grease my trailers axles?"

If your trailer has grease axles, we recommend re-greasing them once a year or every 12,000–36,000 miles. Jack up the trailer, remove the hub grommet, and use a manual grease gun on the grease zerk (pneumatic guns can damage seals). Slowly spin the wheel while adding grease until new grease appears, then stop. Wipe off the excess, replace the grommet, and repeat on all axles.

"What hydraulic fluid do I need for my trailer's hydraulic pump?"

If you are looking to fill up or replace the hydraulic fluid in the hydraulic pump on your Lamar trailer, you should replace it with AW-32.
You can find AW-32 Fluid at any local trailer dealership, Home Depot, Lowes, or local parts stores like Advanced Auto Parts, O'Reillys, or Auto Zone.
